Super-precision
Part Processing
Part Processing
SA TECH. Co., Ltd. has abundant experience and technology of
ultra-precision polishing part which has been accumulated for 20 years.
ultra-precision polishing part which has been accumulated for 20 years.
Grinding
Cylindric Grinder / Surface Grinding Machine
Click on the image of the Equipment for more details.

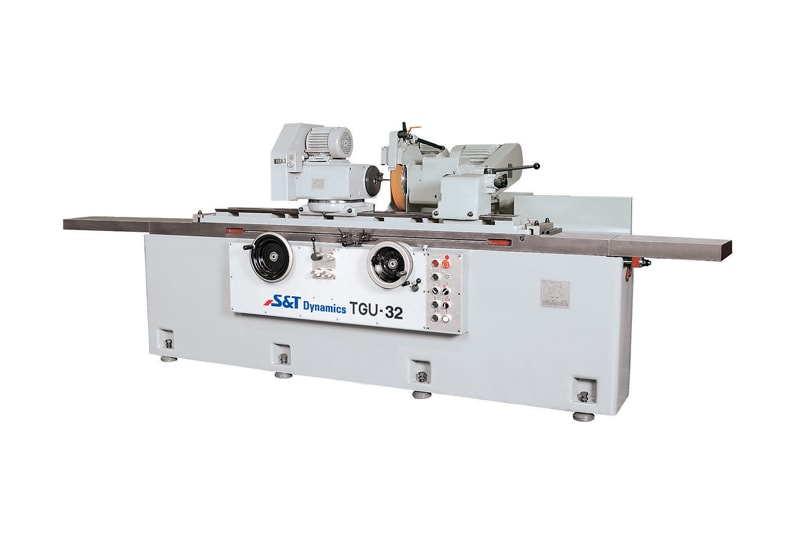

TGU(A)-32S/32L
TGU(A)-32S/32L(Cylindric Grinder )
| Manufacturer / Numbers | S&T Dynamics / 20units |

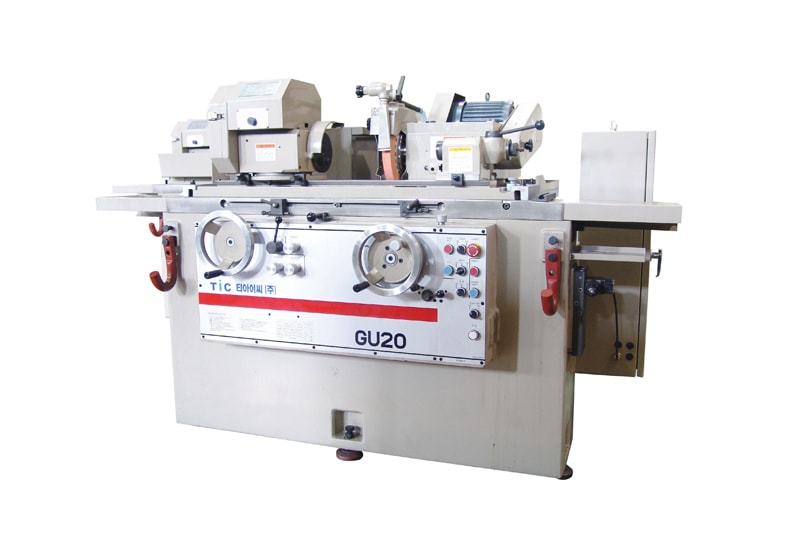

GU20-H
GU20-H(Cylindric Grinder )
| Manufacturer / Numbers | TIC Co., Ltd. / 1units |

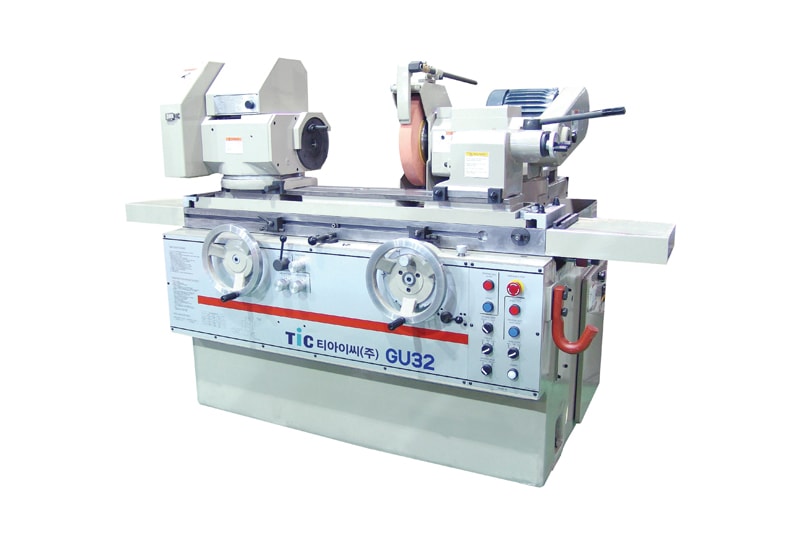

GU-32A
GU-32A(Cylindric Grinder )
| Manufacturer / Numbers | TIC Co., Ltd. / 2units |

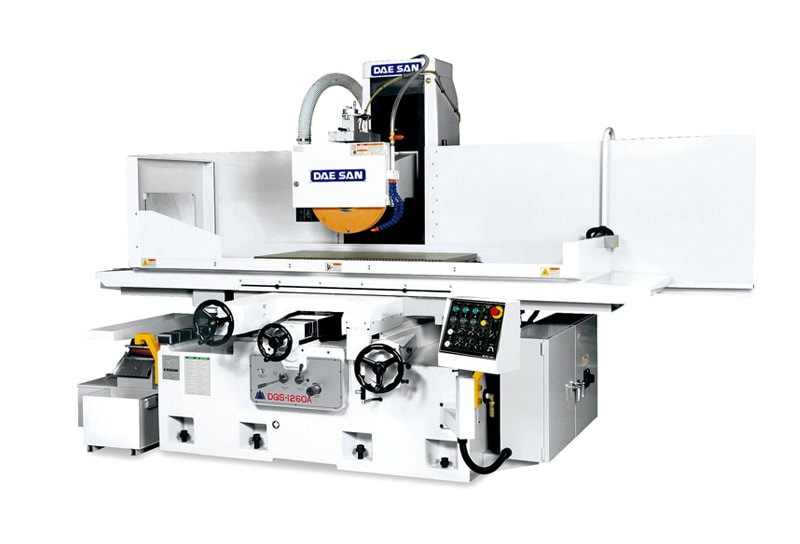

DGS-1260A
DGS-1260A(Surface Grinding Machine)
| Manufacturer / Numbers | Dae San Machinery ind. Co., Ltd. / 1units |

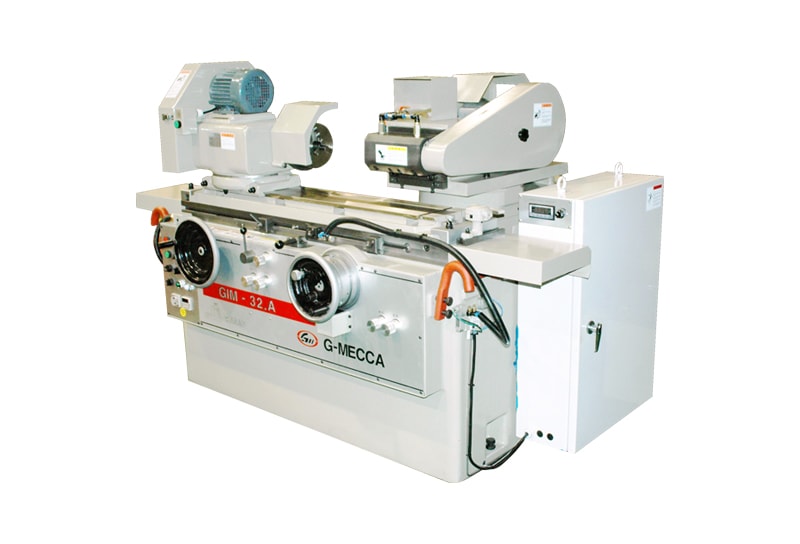

GIM-32A
GIM-32A
| Manufacturer / Numbers | G-MECCA / 3units |
Center-less Grinding Machine
| The Name of Facility | KCG-300 | KCG-200 | KCG-200J |
|---|---|---|---|
| Amount | 2units | 2units | 4units |
| Possible Diameter for Grinding | Φ1.5~120 | Φ1.0~90 | Φ1.0~50 |
| The Maximum Length of Grinding | 300 | 200 | 200 |
| Standard Size of Grinding Wheel (D×W×B) | 610×305×305 | 610×205×305 | 510×205×254 |
| Standard Size of Adjuster (D×W×B) | 330×305×152 | 305×205×127 | 305×205×152 |
Double Headed Grinder
| The Name of Facility | Amount | Wheel Diameter | Ring width Max. | Max. Load Pressure (DaN) | Dimension (W×D×H) |
|---|---|---|---|---|---|
| ADG-600 | 2units | Φ630 | 205 | 600 | 1,700×1,500×2,290 |
2C Grinder
| The Name of Facility | Amount | Possible Diameter for Grinding | The Maximum Length of Grinding | Standard Size of Grinding Wheel (D×W×B) | Standard Size of Adjuster (D×W×B) |
|---|---|---|---|---|---|
| KOYO-2C | 8units | Φ50 | 80 | 455×80×228.6 | 330×80×180 |
